CST

Overview

The CODOL CST Series EN733 Standard Centrifugal Pump is designed for reliable water transfer and pressure boosting in commercial, industrial, agricultural, and municipal applications. Manufactured according to the EN733 standard, it offers excellent hydraulic performance, long service life, and easy maintenance. Various configurations are available to meet different installation requirements, including close-coupled, long-coupled, and baseplate-mounted versions.

Features

Designed according to EN733 international standard
High hydraulic efficiency and stable performance
Available with square or round motor
IE3/YE3 high-efficiency motor available
Heavy-duty cast iron casing with anti-corrosion coating
Stainless steel AISI 304 or cast iron impeller options
Stainless steel AISI 304 or galvanized steel shaft
Premium NSK bearings for extended service life
High-quality mechanical seal for reliable operation
Continuous duty S1
Maximum working pressure up to 16 bar
Suitable for liquid temperatures from -10°C to +120°C

Applications

Suitable for pumping clean water and non-aggressive liquids in:

Water supply systems
Pressure boosting systems
Irrigation systems
HVAC water circulation
Firefighting systems
Industrial water transfer
Agricultural applications
Cleaning equipment
Commercial buildings
Municipal water systems

Specifications

MODEL	Power		gpm	0	26	40	66	79	106	119	159	185	211	238	317	370	396	476	529	608	793	925	DN
	kW	hp	l/min	0	100	150	250	300	400	450	600	700	800	900	1200	1 400	1500	1800	2000	2300	3000	3500
			m³/h	0	6	9	15	18	24	27	36	42	48	54	72	84	90	108	120	138	180	210	mm
32-125/07	0.75	1	H(m)	17.5	16.7	15	12	9															50x32
32-125/11	1.1	1.5	H(m)	22	21	19.7	16.5	14.5	9														50x32
32-160/15	1.5	2	H(m)	25.4	23.7	22.5	18.5	15.8															50x32
32-160/22	2.2	3	H(m)	31	29.6	28.5	24.5	22	15														50x32
32-160/30	3	4	H(m)	35	34.3	34	28	25.5	19	15													50x32
32-200/30	3	4	H(m)	44.2	43	39.8	35.2	32.2	24.6	19.8													50x32
32-200/40	4	5.5	H(m)	54.5	52	50	45.5	41.9	35	30.3													50x32
32-250/55	5.5	7.5	H(m)	60	59.5	59	55	51	34.5														50x32
32-250/75	7.5	10	H(m)	69.5	69	68.5	66	63	53														50x32
32-250/110	11	15	H(m)	90	89.5	89	82	79	66														50x32
32-250/55D	5.5	7.5	H(m)	79.5	74.7	71.8	63	56	37.5														50x32
32-250/75D	7.5	10	H(m)	95	93	91	83	76	57.8														50x32
40-125/11	1.1	1.5	H(m)	14.7				13.5	11.5	10.1	5.8												65x40
40-125/15	1.5	2	H(m)	18.1				17	15	13.9	9.6	6											65x40
40-125/22	2.2	3	H(m)	24.5				23.2	21.5	20.2	16	13	8.3										65x40
40-160/30	3	4	H(m)	31.8				29.5	27.5	26.3	21.5	17.5											65x40
40-160/40	4	5.5	H(m)	38				36	34	33	28.5	25	20.1										65x40
40-200/55	5.5	7.5	H(m)	46				43.8	41.3	40.1	35	30											65x40
40-200/75	7.5	10	H(m)	57				53.6	51.5	50	45	41	36.5										65x40
40-250/92	9.2	12.5	H(m)	64				59	56.5	55	49.5	45	39.8										65x40
40-250/110	11	15	H(m)	72				67.5	66	63.5	57.5	52.2	47										65x40
40-250/150	15	20	H(m)	84.5				80	77.3	75.2	71	65	61										65x40
50-125/22	2.2	3	H(m)	17							15.4	14	12.8	11.5	6.5								65x50
50-125/30	3	4	H(m)	20							18.8	18	17	15.6	11								65x50
50-125/40	4	5.5	H(m)	24							23.1	23	21.5	20.3	15.8	11.8							65x50
50-160/55	5.5	7.5	H(m)	32							30.6	30	28	26.6	20.5	14.8							65x50
50-160/75	7.5	10	H(m)	40							38	37	36	34.4	29	24	21						65x50
50-200/92	9.2	12.5	H(m)	50.5							46.8	45	43	40.9	32.5	26.7							65x50
50-200/110	11	15	H(m)	57.5							53.5	52	50	47.5	40	34	29						65x50
50-200/150	15	20	H(m)	62							58	56.5	54.5	52	44.5	39	35.5						65x50
50-250/150	15	20	H(m)	68.5							64	63	61.5	59	50	41							65x50
50-250/185	18.5	25	H(m)	79							75.8	74.8	74	71.5	63.5	55.5	47						65x50
50-250/220	22	30	H(m)	89.5							86	85.3	84	81.5	73.5	65.5	57						65x50
65-125/40	4	5.5	H(m)	19									17.3	16.8	14.5	13	11.8						80x65
65-125/55	5.5	7.5	H(m)	23									21.3	20.9	19	17.5	16.7	13.7					80x65
65-125/75	7.5	10	H(m)	27									26	25.6	24.5	23	22.5	20	18				80x65
65-160/92	9.2	12.5	H(m)	33										31.5	30	28	27.1	24	21.5				80x65
65-160/110	11	15	H(m)	36										34.5	33	31.5	30.8	28	25.5				80x65
65-160/150	15	20	H(m)	42										41	40	38.5	37.8	35	33	29.5			80x65
65-200/150	15	20	H(m)	45										45.5	43	41	40.2	36.5	34				80x65
65-200/185	18.5	25	H(m)	52										52.3	51	49	48.2	44.5	42				80x65
65-200/220	22	30	H(m)	59										59.5	58	56	55	52	49.5	44.5			80x65
65-250/220	22	30	H(m)	64.8										64.7	62	60	58.5	53	50				80x65
65-250/300	30	40	H(m)	80										79.8	77.5	75.5	74.5	70	66	58			80x65
65-250/370	37	50	H(m)	92										90.5	88.5	87	85	80.5	78	68			80x65
65-315/370	37	50	H(m)	102										99.2	97	95	94.5	92.4	90	83			80x65
65-315/450	45	60	H(m)	112										109.2	107.7	105.8	104.5	102.5	100	93	66		80x65
65-315/550	55	75	H(m)	122										119.2	117.4	115.7	114.5	112.5	110	103	76		80x65
65-315/750	75	100	H(m)	141										139.8	137.3	135.6	134.5	132.5	130	122	96	65.5	80x65
80-125/40	4	5.5	H(m)	17									16.5	15.9	14.3	13.5	11.6	10	7.5				100x80
80-125/55	5.5	7.5	H(m)	21									20.5	20	19	18	16.5	15	12.5	9.5			100x80
80-125/75	7.5	10	H(m)	26									25	25	24.5	23.8	22.5	21.5	19.5	16.5			100x80

MODEL	Power		gpm	0	106	119	132	159	185	198	220	264	317	370	396	423	476	617	661	881	1101	DN
	kW	hp	l/min	0	400	450	500	600	700	750	833	1000	1200	1400	1500	1600	1800	2333	2500	3333	4166
			m³/h	0	24	27	30	36	42	45	50	60	72	84	90	96	108	140	150	200	250	mm
65-160/11	1.1	1.5	H(m)	8	7.5	7.4	7.3	7	6.6	6.3	5.8	4.8	3.4									80x65
65-160/15	1.5	2	H(m)	9	8.5	8.4	8.3	8	7.6	7.4	6.9	6	4.6									80x65
65-160/22	2.2	3	H(m)	10.3	9.9	9.9	9.8	9.5	9.2	9	8.6	7.8	6.5	5								80x65
65-200/15	1.5	2	H(m)	10			9.6	9.1	8.5	8.2	7.6	6.4	4.6									80x65
65-200/22	2.2	3	H(m)	12.4			12.2	11.8	11.3	11	10.4	9.3	7.6									80x65
65-200/30	3	4	H(m)	14.4			14.3	13.8	13.4	13.1	12.5	11.3	9.6	7.5								80x65
65-250/30	3	4	H(m)	15.4			14.6	13.9	13.1	12.6	11.6	9.7	6.7									80x65
65-250/40	4	5.5	H(m)	19			18.3	17.8	17.2	16.9	16.1	14.4	11.7									80x65
65-250/55	5.5	7.5	H(m)	22.3			21.3	20.9	20.3	19.9	19.2	17.7	15.1	12								80x65
65-315/40	4	5.5	H(m)	18.6			17.9	17.3	16.7	16.2	15.2	13.3										80x65
65-315/55	5.5	7.5	H(m)	22.1				21.2	20.6	20.2	19.2	17.3	14									80x65
65-315/75	7.5	10	H(m)	26.5				25.6	25.2	24.9	24.3	23	20.8	17.6								80x65
65-315/110	11	15	H(m)	34.8				34.2	33.9	33.7	33.2	32.1	30.2	27.4	25.6	23.7	18.7					80x65
80-160/15	1.5	2	H(m)	7.2						7.1	6.9	6.4	5.5	4.6	4.1	3.5						100x80
80-160/22	2.2	3	H(m)	8.5						8.6	8.4	8	7.4	6.6	6.2	5.7	5					100x80
80-200/30	3	4	H(m)	11.2						11	10.7	10.1	9.2	8	7.3	6.6						100x80
80-200/40	4	5.5	H(m)	13.8						13.8	13.6	13.3	12.4	11.3	10.7	10	9					100x80
80-250/40	4	5.5	H(m)	16.5						16	15.6	14.8	13.2	11.4	10.2	9						100x80
80-250/55	5.5	7.5	H(m)	19.8						19.5	19.1	18.4	17.2	15.5	14.5	13.5	11.1					100x80
80-250/75	7.5	10	H(m)	23.6						23.5	23.2	22.5	21.3	19.9	19	18.1	16					100x80
80-250/110	11	15	H(m)	27.6						27.5	27.2	26.5	25.3	23.9	23	22.1	20	15				100x80
80-315/55	5.5	7.5	H(m)	19.7						19.1	18.8	18.1	16.8	15	13.9	12.8	10.1					100x80
80-315/75	7.5	10	H(m)	24.6						23.9	23.6	23	21.9	20.4	19.5	18.6	16.3					100x80
80-315/110	11	15	H(m)	29.9						29.4	29.2	28.8	28.1	27	26.3	25.5	23.6	16.5	13.5			100x80
80-315/150	15	20	H(m)	36.8						36.4	36.1	35.6	34.7	33.6	33	32.4	30.9	25.3	23			100x80
80-400/185	18.5	25	H(m)	40.3						39.7	39.5	39.1	38.4	37.3	36.6	35.9	34.1	27.3	24.5			100x80
80-400/220	22	30	H(m)	45.1						44.6	44.5	44.2	43.6	42.6	42	41.4	39.8	33.4	30.7			100x80
80-400/300	30	40	H(m)	55.1						54.7	54.6	54.4	54	53.3	52.8	52.2	50.9	45.4	43.2			100x80
100-160/22	2.2	3	H(m)	5.9						5.8	5.7	5.5	5.3	5	4.9	4.6	4.3					125x100
100-160/30	3	4	H(m)	8.2						8.1	8	7.9	7.6	7.3	7.2	6.9	6.5	5.1				125x100
100-160/40	4	5.5	H(m)	10						10	9.9	9.7	9.4	9.1	9	8.7	8.3	6.9	6.3			125x100
100-200/40	4	5.5	H(m)	11.8						11.7	11.6	11.4	11	10.5	10.3	9.7	9.1	6.8	5.9			125x100
100-200/55	5.5	7.5	H(m)	14.8						14.7	14.7	14.5	14.2	13.9	13.8	13.5	13	11.1	10.3			125x100
100-250/55	5.5	7.5	H(m)	15.9						15.8	15.7	15.5	14.9	14.4	14.1	13.4	12.5	9.2	7.9			125x100
100-250/75	7.5	10	H(m)	19.5						19.5	19.4	19.2	18.8	18.3	18.1	17.6	16.9	14	12.7			125x100
100-250/110	11	15	H(m)	24.3						24.3	24.2	24.1	23.7	23.3	23.1	22.7	22.1	19.7	18.6	11.4		125x100
100-250/150	15	20	H(m)	27.8						27.8	27.7	27.6	27.2	26.8	26.6	26.2	25.6	23.2	22.1	14.9		125x100
100-315/150	15	20	H(m)	29.9							29.7	29.5	29.1	28.8	28.6	28.1	27.5	25	24	16.8		125x100
100-315/185	18.5	25	H(m)	35							34.4	34.2	33.8	33.5	33.3	32.8	32.2	30	29	22.4		125x100
100-315/220	22	30	H(m)	37							36.8	36.7	36.4	36.1	35.9	35.5	35.1	33.2	32.4	26.6		125x100
100-315/300	30	40	H(m)	42							41.8	41.7	41.4	41.1	40.9	40.5	40.1	38.2	37.4	31.6		125x100
100-400/300	30	40	H(m)	46.4								46	46	46	46	45	44	42	40	29.6		125x100
100-400/370	37	50	H(m)	51.8								51.3	51.2	51.1	51	50.5	49.5	47.5	46	37.3		125x100
100-400/450	45	60	H(m)	57.1								56.7	56.4	56.1	56	56	55	53	52	45	32.1	125x100

MODEL	Power		gpm	0	264	396	529	634	793	881	925	969	1057	1233	1322	1586	1762	2203	2643	3524	4405	DN
	kW	hp	l/min	0	1000	1500	2000	2400	3000	3333	3500	3666	4000	4666	5000	6000	6666	8333	10000	13333	16666
			m³/h	0	60	90	120	144	180	200	210	220	240	280	300	360	400	500	600	800	1000	mm
80-160/110	11	15	H(m)	27	27	27.3	24.5	21.1	16													100x80
80-160/150	15	20	H(m)	32.8	32.6	32.5	30.2	27	22.1	18.5	16.7											100x80
80-160/185	18.5	25	H(m)	39	38.5	38	36.7	33.6	28.8	25.3	23.5											100x80
80-160/220	22	30	H(m)	44	43.5	43	41.7	38.6	33.8	30.3	28.5											100x80
80-200/220	22	30	H(m)	48	47.7	47.5	43.5	39.2	32.5	27.2	24.5											100x80
80-200/300	30	40	H(m)	60	59.7	59.5	57	53.1	47	42.7	40.5											100x80
80-250/370	37	50	H(m)	71.5	70.9	70.5	65.5	59.3	51	43.2	38.5											100x80
80-250/450	45	60	H(m)	88	86.7	86	83.6	78.5	70.5	60	51											100x80
80-250/550	55	75	H(m)	94.5	94.5	94.5	91.8	87	79.5	72.1	68.3											100x80
80-315/450	45	60	H(m)	85	84	82.6	82	78	68.3	61	56											100x80
80-315/550	55	75	H(m)	98	97	95.6	95	91	81.3	74	69											100x80
80-315/750	75	100	H(m)	124	123	121.6	121	117	107.3	100	95	90	80.8									100x80
80-315/900	90	125	H(m)	144	143	141.6	141	137	127.3	120	115	110	100.8									100x80
100-160/150	15	20	H(m)	35	33.5	32.5	30	27.8	24.5	21.5	20	18.3	15									125x100
100-160/185	18.5	25	H(m)	38.5	37.5	36.5	34.3	32.2	29	25.7	24	22	18									125x100
100-160/220	22	30	H(m)	43	41	40	37.6	35.2	31.5	28.5	27	25.3	22									125x100
100-200/220	22	30	H(m)	38.5	36.7	35.7	33.8	31.7	28.5	26.8	26	25	22.9	16.3	13							125x100
100-200/300	30	40	H(m)	44.5	42.5	42	40.2	38.8	36.7	34.2	33	31.7	29	21.7	18							125x100
100-200/370	37	50	H(m)	55	53	51	50.6	49.2	47	45	44	42.8	40.5	32.8	29							125x100
100-250/450	45	60	H(m)	65	65	64	63	61	58	56	55	53.3	50	39	33.5							125x100
100-250/550	55	75	H(m)	77	76	75.5	75	73.8	72	71.7	71.5	70.7	69	62.3	59							125x100
100-250/750	75	100	H(m)	91	91	90.5	89.7	88	85.5	84	83.3	81.5	78	71.7	68.5	48						125x100
100-315/550	55	75	H(m)	80			79	77.4	75	74	73.5	73	71.3	68	66	60						125x100
100-315/750	75	100	H(m)	100			99	97.4	95	94	93.5	93	91.3	88	86	80						125x100
100-315/900	90	125	H(m)	118			116.5	114.7	112	111	110.8	110.5	108.7	106	104	98						125x100
100-315/1100	110	150	H(m)	138			136.5	134.7	132	131	130.8	130.5	128.7	126	124	118						125x100
125-200/450	45	60	H(m)	39.8			39.3	39.2	39	38.9	38.9	38.8	37.5	35	34	28.6	25					150x125
125-200/550	55	75	H(m)	49.8			49.3	49.2	49	48.9	48.9	48.8	47.5	45	44	38.6	35					150x125
125-200/750	75	100	H(m)	60.8			60.3	60.2	60	59.9	59.9	59.8	58.5	56	55	49.6	46					150x125
125-250/550	55	75	H(m)	70			67	65	64	63	62	61	59.5	57	56	53						150x125
125-250/750	75	100	H(m)	80			77	75	74	73	72	71	69.8	67.1	66.2	63	58.5					150x125
125-250/900	90	125	H(m)	87			84	82	81	80	79	78	77	74.5	73.5	70.2	65.7					150x125
125-250/1100	110	150	H(m)	97			94	92	91	90	89	88	87	84.6	83.9	80.4	76					150x125
125-315/900	90	125	H(m)	89						87	86	85	83.7	81.5	81	77	74	61				150x125
125-315/1100	110	150	H(m)	103						101	100	99	97.8	95.5	95	91.5	88.2	75.6				150x125
125-315/1320	132	180	H(m)	118						116	115	114	112.5	110.5	110.3	106.5	103.2	91				150x125
125-315/1600	160	220	H(m)	138						136.8	135.9	135	133.7	131.5	131	127.5	124.2	112				150x125
150-200/750	75	100	H(m)	50								48	47.9	47.6	47.2	46.7	46.4	40.6	36.8	25.2		200x150
150-200/900	90	125	H(m)	56								54	53.9	53.6	53.2	52.7	52.4	48	42.8	31.2		200x150
150-200/1100	110	150	H(m)	65.2								62	61.7	61.2	60.8	59.8	59.2	57.2	54	46		200x150
150-250/1100	110	150	H(m)	67											64.2	62	60.6	55.8	49.8	33.8		200x150
150-250/1320	132	180	H(m)	80.2											78.2	76.3	75	70.6	65	50.2	29.8	200x150
150-250/1600	160	220	H(m)	90											88.4	87	86	82	77.2	62.4	42	200x150
150-315/1600	160	220	H(m)	92											90	88.3	87.2	82.8	76.8	60.4		200x150
150-315/2000	200	270	H(m)	111											110.6	108.7	107.4	103.4	98.2	83.4	62.2	200x150
150-315/2500	250	340	H(m)	135											135.4	133.7	132.6	128.6	123.8	110.2	91	200x150

MODEL	Power		gpm	0	132	154	176	220	264	396	441	485	617	661	881	1101	1322	1762	2203	2643	DN
	kW	hp	l/min	0	500	583	667	833	1000	1500	1667	1833	2333	2500	3333	4167	5000	6667	8333	10000
			m³/h	0	30	35	40	50	60	90	100	110	140	150	200	250	300	400	500	600	mm
125-200/55	5.5	7.5	H(m)	11.4	11.1	11.1	11	10.9	10.8	10.2	10	9.7	8.9	8.6	6.9						150x125
125-200/75	7.5	10	H(m)	14.1	13.9	13.8	13.8	13.7	13.6	13.1	12.9	12.7	11.9	11.6	9.6						150x125
125-200/110	11	15	H(m)	18.1	17.9	17.8	17.8	17.7	17.6	17.1	16.9	16.7	15.9	15.6	13.6	9.8					150x125
125-250/75	7.5	10	H(m)	15.4					15.3	15	14.8	14.6	13.6	13.1							150x125
125-250/110	11	15	H(m)	19.4					19.3	19.1	19	18.9	18.1	17.8	15.3	11.7					150x125
125-250/150	15	20	H(m)	23.2					23.3	23.1	23	22.9	22	22	19.8	16.5	12.3				150x125
125-250/185	18.5	25	H(m)	25.6					25.5	25.5	25.4	25.3	24.9	24.7	23	20.3	16.5				150x125
125-315/185	18.5	25	H(m)	27.3							26.9	26.7	25.9	25.6	23.3	19.7	14.9				150x125
125-315/220	22	30	H(m)	30							29.7	29.6	28.9	28.6	26.5	23.2	18.4				150x125
125-315/300	30	40	H(m)	35.6							35.4	35.3	34.8	34.6	32.9	30.1	26.1				150x125
125-315/370	37	50	H(m)	38.2							38	37.9	37.4	37.2	35.7	33.1	29.4	17.8			150x125
125-400/220	22	30	H(m)	33.4						32.8	32.5	32.1	30.5	29.7	24.7	17.3					150x125
125-400/300	30	40	H(m)	41						41	40.5	40.3	39.2	38.6	34.4	27.5	18.3				150x125
125-400/370	37	50	H(m)	46.2						46	45.7	45.5	44.6	44.2	40.7	34.8	26.5				150x125
125-400/450	45	60	H(m)	51.4						51	50.9	50.8	50.1	49.8	47	42.2	34.8				150x125
125-400/550	55	75	H(m)	56.5						56.3	56.3	56.2	55.9	55.7	53.8	50.3	44.7	26.7			150x125
150-200/110	11	15	H(m)	14								13.5	13.4	13.3	13.1	12.9	11.7	7.8			200x150
150-200/150	15	20	H(m)	16.3								15.5	15.3	15.2	14.8	14.3	13.5	11.1			200x150
150-200/185	18.5	25	H(m)	18.3								17.5	17.3	17.2	16.8	16.3	15.5	13.1	10		200x150
150-250/150	15	20	H(m)	17.5										16.8	15.9	14.7	13.2	9.2			200x150
150-250/185	18.5	25	H(m)	21.3										20.8	20	18.9	17.5	13.8	8.7		200x150
150-250/220	22	30	H(m)	24										23.6	23	22	20.8	17.1	12		200x150
150-250/300	30	40	H(m)	25.5										25	24.5	23.5	22	18.8	13.8		200x150
150-315/300	30	40	H(m)	30.2										29.7	29	27.9	26.4	22.3			200x150
150-315/370	37	50	H(m)	33.6										33.5	32.7	31.7	30.4	26.7	21.4		200x150
150-315/450	45	60	H(m)	37.7										37.6	36.9	35.9	34.7	31.3	26.5		200x150
150-315/550	55	75	H(m)	40										40	39.3	38.4	37.2	33.9	29.4		200x150
150-315/750	75	100	H(m)	45										45	44.3	43.4	42.2	38.9	34.4	27	200x150
150-400/550	55	75	H(m)	48.2									47.7	48	46	45	42	36.8	29.2		200x150
150-400/750	75	100	H(m)	55.4									55	55	54	53	51	47	41	32.2	200x150
150-400/900	90	125	H(m)	59.5									59	59	58	57	56	52	46	37.7	200x150
150-400/1100	110	150	H(m)	65.5									65	65	64	63	62	58	52	43.7	200x150

MODEL	Power		gpm	0	604	991	1374	1762	2145	2533	2916	3304	3687	4075	4564	5075	5586	DN
	kW	hp	l/min	0	2283	3750	5200	6667	8117	9583	11033	12500	13950	15417	17267	19200	21133
			m³/h	0	137	225	312	400	487	575	662	750	837	925	1036	1152	1268	mm
200-250/185	18.5	25	H(m)	15.7	15.3	14.8	13.7	12.2	10.6	8.9	6.8							250x200
200-250/220	22	30	H(m)	18.5		17.2	16.2	14.8	13.1	11.1	8.7							250x200
200-250/300	30	40	H(m)	23.1		21.5	20.5	19.4	17.9	16	13.6	10.8						250x200
200-315/550	55	75	H(m)	31.1		30.2	29.8	29.1	27.9	25.8	23	19.2	14.8					250x200
200-315/750	75	100	H(m)	35.1		34.3	34	33.3	32	29.9	27.1	23.4	19.1					250x200
200-315/900	90	125	H(m)	42.1		41.3	41	40.3	39	36.9	34.1	30.4	26.1					250x200
200-400/750	75	100	H(m)	41		40.6	40.3	39.4	37.7	35	31.3	26.5						250x200
200-400/900	90	125	H(m)	46.5		46	45.7	44.9	43.4	41.1	37.7	33.3	27.9					250x200
200-400/1100	110	150	H(m)	52.4		52.2	51.9	51.2	50	48	45.1	41.2	36.2					250x200
200-400/1320	132	180	H(m)	60.1		59.8	59.6	59	57.9	56.1	53.5	50	45.4	39.6				250x200
250-315/550	55	75	H(m)	26.1			24.9	24.5	24.1	23.6	22.8	21.6	19.9	18	14.5			300x250
250-315/750	75	100	H(m)	35.4			35.2	34.7	33.8	32.5	30.4	28	25	21.8	16.4			300x250
250-315/900	90	125	H(m)	39.8			39.8	39.5	38.8	37.9	36	33.9	31	27.9	22.5			300x250
250-400/1100	110	150	H(m)	45.1			45	44.9	44.5	43.8	42.3	40.5	37.9	35.1	30	23.9		300x250
250-400/1320	132	180	H(m)	50.8			50.6	50.5	50.2	49.7	48.4	46.8	44.5	42	37.3	31.5		300x250
250-400/1600	160	220	H(m)	56.9			56.4	56.3	56	55.6	54.5	53.1	51.1	48.9	44.7	39.4	33	300x250

Overview

Features

Applications

Specifications

相关产品

CVM

EC

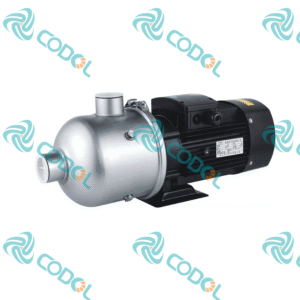

CHL(F)(T)

BPCA

CHM
