Overview

The CODOL CDL / CDLF series vertical multistage centrifugal pumps are designed for clean water transfer and pressure boosting in residential, commercial and industrial applications. Featuring a compact vertical structure and high hydraulic efficiency, they provide reliable performance, low operating noise and long service life. The CDLF series adopts stainless steel wetted parts, making it suitable for a wider range of clean and mildly corrosive liquids.

Features

High-efficiency multistage centrifugal design
Compact vertical installation saves space
Stable pressure and continuous operation
Low noise and energy-saving performance
Stainless steel wetted parts available (CDLF)
Cast iron hydraulic components available (CDL)
Mechanical seal ensures reliable operation
Easy installation and convenient maintenance
Wide operating range for various applications
Multiple voltage and frequency options
OEM & ODM customization available

Applications

Water Supply Systems
Pressure Boosting
High-rise Buildings
Industrial Water Transfer
Water Treatment Systems
Boiler Feed Systems
HVAC Systems
Irrigation Systems
Cooling Water Circulation
Commercial Buildings

Specification

Description	CDL1	CDL2	CDL3	CDL4	CDL8	CDL12	CDL16	CDL20	CDL32	CDL42	CDL65	CDL85	CDL120	CDL150	CDL200
Rated flow [m3/h]	1	2	3	4	8	12	16	20	32	42	65	85	120	150	200
Rated flow [l/s]	0.28	0.56	0.83	1.1	2.2	3.3	4.4	5.6	8.9	11.7	18	24	33	41.6	55.6
Flow range [m3/h]	0.4-2	1-3.5	1.2-4	1.5-7	5-12	7-16	8-22	10-28	16-40	25-55	30-80	50-110	60-150	80-180	100-240
Flow range [l/s]	0.11-0.56	0.28-0.97	0.33-1.1	0.42-1.9	1.4-3.3	1.9-4.4	2.2-6.1	2.8-7.8	4.4-11.1	6.9-15.3	8.3-22.2	13.8-30.5	16.7-41.7	22-50	27.8-66.7
Max. pressure [bar]	21	23	22	21	21	22	22	23	29	30	22	17	16	16	16
Motor power [kW]	0.37-2.2	0.37-3	0.37-3	0.37-4	0.75-7.5	1.5-11	2.2-15	1.1-18.5	1.5-30	3.0-45	4.0-45	5.5-45	11-75	11-75	18.5-110
Temperature range [deg C]	-15 to +120
Max. efficiency [%]	44	46	54	57	62	63	66	69	73	75	76	77	74	73	79
Type
CDL	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
CDLF	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
CDL pipe connection
DIN flange	DN25	DN25	DN25	DN32	DN40	DN50	DN50	DN50	DN65	DN80	DN100	DN100	DN125	DN125	DN150
CDLF pipe connection
DIN flange	DN25	DN25	DN25	DN32	DN40	DN50	DN50	DN50	DN65	DN80	DN100	DN100	DN125	DN125	DN150
Compression fitting	DN32	DN32	DN32	DN32	DN50	DN50	DN50	DN50
Pipe thread	ZG1 1/4	ZG1 1/4	ZG1 1/4	ZG1 1/4	ZG2	ZG2	ZG2	ZG2

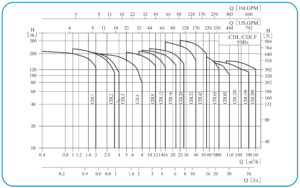

Model	Power (kW)	Q (m3/h)	0.4	0.6	0.8	1	1.2	1.4	1.6	1.8	2
CDL(F)1-2	0.37	H (m)	13	125	12	115	11	105	10	95	9
CDL(F)1-3	0.37		19	18	175	17	165	16	15	14	12
CDL(F)1-4	0.37		24	235	23	225	215	21	195	18	16
CDL(F)1-5	0.37		30	296	29	28	27	26	24	22	20
CDL(F)1-6	0.37		36	355	35	335	33	31	28	26	23
CDL(F)1-7	0.37		42	41	405	39	38	36	33	30	27
CDL(F)1-8	0.55		48	47	46	45	43	41	38	34	30
CDL(F)1-9	0.55		54	53	52	51	49	46	43	39	33
CDL(F)1-10	0.55		61	59	58	57	54	51	48	43	36
CDL(F)1-11	0.55		66	65	63	61	59	56	52	47	41
CDL(F)1-12	0.75		72	71	69	67	64	61	57	51	44
CDL(F)1-13	0.75		78	77	75	73	69	66	62	55	47
CDL(F)1-15	0.75		89	88	86	84	79	76	71	63	55
CDL(F)1-17	1.1		101	99	97	95	89	86	80	71	62
CDL(F)1-19	1.1		113	110	108	106	99	96	80	745	69
CDL(F)1-21	1.1		124	122	120	117	110	106	98	87	75
CDL(F)1-23	1.1		137	133	131	128	121	116	106	96	82
CDL(F)1-25	1.5		149	145	143	139	131	126	116	104	89
CDL(F)1-27	1.5		161	157	155	150	141	136	125	112	95
CDL(F)1-30	1.5		178	175	171	166	157	150	139	124	106
CDL(F)1-33	2.2		106	192	188	183	173	165	154	137	118
CDL(F)1-36	2.2		214	211	211	211	196	181	169	151	130

Model	Power (kW)	Q (m3/h)	1	1.2	1.6	2	2.4	2.8	3.2	3.5
CDL(F)2-2	0.37	H (m)	18	17	16	15	13	12	10	8
CDL(F)2-3	0.37		27	26	24	22	20	18	15	12
CDL(F)2-4	0.55		36	35	33	30	26	24	20	16
CDL(F)2-5	0.55		45	43	41	37	33	30	25.5	21
CDL(F)2-6	0.75		53	52	51	45	41	36	31	24
CDL(F)2-7	0.75		63	61	57	52	47	41	35	28
CDL(F)2-9	1.1		80	78	73	67	60.5	54	45	37
CDL(F)2-11	1.1		98	95	89	82	73	64	54	44
CDL(F)2-13	1.5		116	114	106	98	89	78	65	52
CDL(F)2-15	1.5		134	130	123	112	100	90	73	60
CDL(F)2-13	2.2		161	157	148	136	121	106	91	76
CDL(F)2-22	2.2		197	192	180	165	148	131	111	91
CDL(F)2-26	3		232	228	214	198	179	158	130	110

Model	Power (kW)	Q (m3/h)	1.2	1.6	2	2.4	2.8	3	3.2	3.6	4
CDL(F)3-2	0.37	H (m)	12.5	11.5	11	10.5	10	9	8	7	6
CDL(F)3-5	0.37		19	18.5	17.5	16.5	15	14	13	11	9
CDL(F)3-4	0.37		25	24	23	21.5	20	19	18	15	12
CDL(F)3-5	0.37		31	30	29	27	25	23	22	19	16
CDL(F)3-6	0.55		36	35	34	32	30	28	27	23	19
CDL(F)3-7	0.55		43	41	39	37	34	32	31	27	22
CDL(F)3-8	0.75		49	47	45	43	39	37	35	31	25
CDL(F)3-9	0.75		55	53	51	48	45	42	40	35	28
CDL(F)3-10	0.75		61	59	57	54	50	47	45	39	31
CDL(F)3-11	1.1		67	64	61	58	54	51	49	42	34
CDL(F)3-12	1.1		73	70	67	63	58	55	52	45	37
CDL(F)3-13	1.1		78	75.5	73	69	64	60.5	57	49	40
CDL(F)3-15	1.1		90	88	84	79	73	69	66	57	46
CDL(F)3-17	1.5		103	100	96	90	83	79	75	64	52
CDL(F)3-19	1.5		115	112	107	100	92	88	83	72	58
CDL(F)3-21	2.2		128	124	119	112	105	98	91	79	64
CDL(F)3-23	2.2		141	135	131	122	112	107	101	86	70
CDL(F)3-25	2.2		151	147	141	131	122	116	109	94	76
CDL(F)3-27	2.2		164	159	152	142	132	124	117	101	82
CDL(F)3-29	2.2		175	170	163	153	142	133	126	107	88
CDL(F)3-31	3		187	182	175	165	153	142	135	116	94
CDL(F)3-33	3		190	194	187	176	163	151	145	125	100
CDL(F)3-36	3		218	212	202	192	178	168	159	137	109

Model	Power (kW)	Q (m3/h)	1.5	2	3	4	5	6	7
CDL(F)4-2	0.37	H (m)	19	18	17	15	13	10	8
CDL(F)4-3	0.55		28	27	26	24	20	18	13
CDL(F)4-4	0.75		38	36	34	32	27	24	19
CDL(F)4-5	1.1		47	45	43	40	34	31	23
CDL(F)4-6	1.1		56	54	52	48	41	37	28
CDL(F)4-7	1.5		66	63	61	56	48	43	33
CDL(F)4-8	1.5		74	72	70	64	55	50	38
CDL(F)4-10	2.2		96	90	87	81	71	62	48
CDL(F)4-12	2.2		114	108	101.5	95	85	75	58
CDL(F)4-14	3		136	126	122	112	101	89	68
CDL(F)4-16	3		152	146	140	129	115	101	78
CDL(F)4-19	4		183	171	168	153	137	122	93
CDL(F)4-22	4		211	200	192	178	160	138	108

Model	Power (kW)	Q (m3/h)	1	2	3	4	5	6	7
CDL(F)5-2	0.37	H (m)	13	12	11	10	9	7	6
CDL(F)5-3	0.37		19	19	18	16	15	12	10
CDL(F)5-4	0.37		26	25	24	22	19	16	14
CDL(F)5-5	0.75		33	32	30	28	24	22	18
CDL(F)5-6	1.1		40	38	37	34	28	27	23
CDL(F)5-7	1.1		46	43	42	40	32	32	27
CDL(F)5-8	1.1		33	31	48	43	40	36	31
CDL(F)5-9	1.5		60	59	56	53	47	44	37
CDL(F)5-10	1.5		67	63	62	39	43.5	48	41
CDL(F)5-11	2.2		74	73	70	66	59	54	47
CDL(F)5-12	2.2		81	79	76	72	63	59	51
CDL(F)5-13	2.2		88	83	82	78	68	64	55
CDL(F)5-14	2.2		93	92	89	83	74	69	60
CDL(F)5-15	2.2		101	99	93	89	79	74	63
CDL(F)5-16	2.2		108	103	101	93	83	78	68
CDL(F)5-18	3		122	119	113	109	98	90	78
CDL(F)5-20	3		133	132	127	120	108	100	87
CDL(F)5-22	4		130	147	142	134	120	112	91
CDL(F)5-24	4		163	160	154	146	132	122	97
CDL(F)5-26	4		176	173	166	157	145	132	106
CDL(F)5-29	4		198	194	188	178	155	149	115
CDL(F)5-32	5.5		214	208	198	189	170	154	131
CDL(F)5-36	5.5		241	234	223	212	191	173	148

Model	Power (kW)	Q (m3/h)	5	6	7	8	9	10	11	12
CDL(F)8-1	0.75	H (m)	10	9.5	9.3	9	8.5	8	7	6
CDL(F)8-2	0.75		20	19.5	19	18	17	16	14	13
CDL(F)8-3	1.1		30	29.5	28.5	27	25	24	21	19
CDL(F)8-4	1.5		41	39.5	38	36	34	32	28	26
CDL(F)8-5	2.2		52	50	48	45	42	40	36	32
CDL(F)8-6	2.2		62	60	57	54	51	48	43	39
CDL(F)8-8	3		83	80	77	73	69	65	58	52
CDL(F)8-10	4		104	100	97	92	87	81	73	65
CDL(F)8-12	4		124	120	116	111	104	92	87	78
CDL(F)8-14	5.5		145	141	136	130	122	113	102	92
CDL(F)8-16	5.5		166	161	156	148	139	130	118	106
CDL(F)8-18	7.5		187	182	175	167	157	146	134	120
CDL(F)8-20	7.5		208	202	195	186	175	163	150	135

Model	Power (kW)	Q (m3/h)	7	8	9	10	11	12	13	14	15	16
CDL(F)12-2	1.5	H (m)	23.5	23	22.5	22	21	20	18.5	17	15.5	14
CDL(F)12-3	2.2		35.5	35	34	33	31.5	30	28	26	23.5	21
CDL(F)12-4	3		47	46	45	44	42	40	37	34	31	28
CDL(F)12-5	3		59.5	58	56.5	55	52.5	50	46.5	43	39	35
CDL(F)12-6	4		71.5	70	68	66	63	60	56	52	47	42
CDL(F)12-7	5.5		83.5	82	79.5	77	73.5	70	65.5	61	55	49
CDL(F)12-8	5.5		95.5	94	91	88	84	80	75	70	63	56
CDL(F)12-9	5.5		108	106	103	100	95.5	91	85	79	71.5	64
CDL(F)12-10	7.5		120	118	114.5	111	106	101	94.5	88	80	72
CDL(F)12-12	7.5		143.5	141	137	133	127	121	113.5	106	96	86
CDL(F)12-14	11		168	165	160	155	148	141	132.5	124	112	100
CDL(F)12-16	11		192.5	189	183.5	178	170	162	152	142	128.5	115
CDL(F)12-18	11		217	213	207.5	202	192.5	183	171.5	160	145	130

Model	Power (kW)	Q (m3/h)	8	10	12	14	16	18	20	22
CDL(F)16-2	2.2	H (m)	27	26	25	24	22	21	19	16
CDL(F)16-3	3		41	40	38	37	34	32	29	25
CDL(F)16-4	4		54	53	52	49	46	43	38	34
CDL(F)16-5	5.5		68	67	65	62	58	54	48	43
CDL(F)16-6	5.5		82	80	78	74	70	64	58	52
CDL(F)16-7	7.5		96	95	91	87	82	76	68	61
CDL(F)16-8	7.5		110	108	104	99	94	86	77	70
CDL(F)16-10	11		138	136	131	125	118	109	97	87
CDL(F)16-12	11		166	162	157	150	141	130	116	105
CDL(F)16-14	15		194	190	184	175	166	152	136	122
CDL(F)16-16	15		222	217	210	200	189	174	156	140

Model	Power (kW)	Q (m3/h)	10	12	14	16	18	20	22	24	26	28
CDL(F)20-1	1.1	H (m)	13.5	13	12.5	12	11	10	9	8	7	6
CDL(F)20-2	2.2		27	26.5	26	25	24	23	22	20	18	15
CDL(F)20-3	4		40	39.5	39	38	37	35	33	30	27	24
CDL(F)20-4	5.5		54	53	52	51	49	47	44	41	37	33
CDL(F)20-5	5.5		67	66	64	62	60	58	55	50	45	40
CDL(F)20-6	7.5		81	79	77	75	73	70	66	61	55	49
CDL(F)20-7	7.5		95	93	91	89	86	82	77	71	65	58
CDL(F)20-8	11		109	107	105	102	99	94	89	82	75	67
CDL(F)20-10	11		136	134	131	128	124	118	111	103	95	85
CDL(F)20-12	15		164	162	158	154	149	142	133	124	114	102
CDL(F)20-14	15		192	189	185	180	174	166	156	145	133	119
CDL(F)20-17	18.5		234	230	225	219	212	202	190	177	162	145

Model	Power (kW)	Q (m3/h)	16	20	24	28	32	36	40
CDL(F)32-10-1	1.5	H (m)	14	13	12	11	9	7	4
CDL(F)32-10	2.2		18	17	15	14	13	11	8
CDL(F)32-20-2	3		29	28	26	23	20	16	11
CDL(F)32-20	4		36	34	32	29	27	23	18
CDL(F)32-30-2	5.5		47	44	41	38	33	28	21
CDL(F)32-30	5.5		54	51	48	44	40	35	27
CDL(F)32-40-2	7.5		65	62	58	53	46	40	30
CDL(F)32-40	7.5		72	69	65	59	53	47	37
CDL(F)32-50-2	11		83	79	74	68	60	52	41
CDL(F)32-50	11		90	86	81	74	67	59	47
CDL(F)32-60-2	11		101	97	90	83	74	65	51
CDL(F)32-60	11		108	102.5	97	90	81	72	57
CDL(F)32-70-2	15		119	114	107	98	88	78	60
CDL(F)32-70	15		126	121	113	105	95	85	67
CDL(F)32-80-2	15		136	131	123	114	102	90	71
CDL(F)32-80	15		144	138	130	120	109	97	77
CDL(F)32-90-2	18.5		154	148	140	129	117	102	82
CDL(F)32-90	18.5		162	156	147	136	124	109	88
CDL(F)32-100-2	18.5		175	166	157	146	131	115	91
CDL(F)32-100	18.5		182	173	164	152	138	122	98
CDL(F)32-110-2	22		193	184	173	164	146	128	102
CDL(F)32-110	22		200	191	180	168	153	135	109
CDL(F)32-120-2	22		211	201	189	178	160	140	113
CDL(F)32-120	22		218	208	196	184	167	147	120
CDL(F)32-130-2	30		230	218	206	193	174	153	124
CDL(F)32-130	30		237	225	213	200	181	160	131
CDL(F)32-140-2	30		247	235	222	210	189	165	135
CDL(F)32-140	30		255	242	229	216	196	172	142
CDL(F)32-150-2	30		266	253	239	224	203	178	145
CDL(F)32-150	30		274	260	246	231	210	185	152
CDL(F)32-160-2	30		284	270	255	240	218	190	156
CDL(F)32-160	30		292	277	262	246	225	197	163

Model	Power (kW)	Q (m3/h)	25	30	35	40	42	45	50	55
CDL(F)45-10-1	3	H (m)	20	19	18	17	16	15	13	11
CDL(F)45-10	4		24	23	22	21	20	19	18	16
CDL(F)45-20-2	5.5		40	38	36	33	32	30	27	23
CDL(F)45-20	7.5		48	46	44	42	41	39	35	31
CDL(F)45-30-2	11		63	61	58	54	52	50	44	38
CDL(F)45-30	11		71	69	66	63	61	58	53	47
CDL(F)45-40-2	15		87	84	80	75	73	69	62	54
CDL(F)45-40	15		95	92	88	84	81	78	71	62
CDL(F)45-50-2	18.5		111	107	102	96	93	88	80	69
CDL(F)45-50	18.5		119	115	110	105	101	97	88	78
CDL(F)45-60-2	22		135	130	124	117	113	108	97	85
CDL(F)45-60	22		143	138	132	125	122	116	106	93
CDL(F)45-70-2	30		158	152	146	138	134	127	115	100
CDL(F)45-70	30		166	161	154	146	142	135	124	109
CDL(F)45-80-2	30		182	175	168	159	154	146	133	116
CDL(F)45-80	30		190	184	176	167	162	154	141	124
CDL(F)45-90-2	30		205	198	190	180	174	166	150	132
CDL(F)45-90	37		214	207	198	188	183	174	159	140
CDL(F)45-100-2	37		230	221	212	200	194	185	168	147
CDL(F)45-100	37		238	230	220	209	203	193	177	155
CDL(F)45-110-2	45		255	245.5	236	223	217	206	188	165
CDL(F)45-110	45		263	255	244	232	225	214	196	173
CDL(F)45-120-2	45		280	270	259	248.5	238	226	206	181
CDL(F)45-120	45		289	280	268	255	247	236	216	190
CDL(F)45-130-2	45		305	294	282	267	259	247	225	198

Model	Power (kW)	Q (m3/h)	30	40	50	60	65	70	80
CDL(F)64-10-1	4	H (m)	19	18	16	14	13	11	8
CDL(F)64-10	5.5		27	25	23	21	20	18	15
CDL(F)64-20-2	7.5		39	36	33	29	26	23	17
CDL(F)64-20-1	11		46	44	40	36	33	30	24
CDL(F)64-20	11		53	51	47	43	40	37	30
CDL(F)64-30-2	15		66	62	56	50	46	41	32
CDL(F)64-30-1	15		73	69	63	57	53	48	39
CDL(F)64-30	18.5		80	76	70	65	60	55	46
CDL(F)64-40-2	18.5		92	87	80	71	66	60	47
CDL(F)64-40-1	22		100	94	87	78	73	67	54
CDL(F)64-40	22		107	101	94	85	80	74	61
CDL(F)64-50-2	30		121	114	105	95	88	80	64
CDL(F)64-50-1	30		128	121	112	102	95	87	71
CDL(F)64-50	30		136	129	119	109	102	90	78
CDL(F)64-60-2	30		150	142	131	118	110	101	81
CDL(F)64-60-1	37		157	149	138	125	117	108	88
CDL(F)64-60	37		164	156	145	132	124	115	95
CDL(F)64-70-2	37		179	169	156	141	132	121	99
CDL(F)64-70-1	37		186	176	163	148	139	128	106
CDL(F)64-70	45		193	183	170	155	146	135	112
CDL(F)64-80-2	45		207	196	182	164	154	142	116
CDL(F)64-80-1	45		215	203	189	171	161	149	123

Model	Power (kW)	Q (m3/h)	50	60	70	80	85	90	100	110
CDL(F)90-10-1	5.5	H (m)	22	19	17	16	14	13	10	6
CDL(F)90-10	7.5		25	24	22	21	20	19	16	12
CDL(F)90-20-2	11		41	39	36	32	30	28	22	15
CDL(F)90-20	15		53	50	47	44	41	40	36	30
CDL(F)90-30-2	18.5		68	65	60	55	52	49	41	32
CDL(F)90-30	22		81	77	72	67	64	62	55	48
CDL(F)90-40-2	30		98	93	87	80	75	72	62	50
CDL(F)90-40	30		110	105	100	92	86	84	76	66
CDL(F)90-50-2	37		126	120	113	104	98	93	81	68
CDL(F)90-50	37		139	131	124	115	110	106	94	83
CDL(F)90-60-2	45		155	148	139	129	122	117	102	86
CDL(F)90-60	45		168	160	150	141	134	130	117	103

Model	Power (kW)	Q (m3/h)	60	70	80	90	100	110	120	130	140	150
CDL(F)120-10	11	H (m)	22	21.8	21.6	21	20.5	19.5	18.5	17	16	15
CDL(F)120-20-2	15		34	33.6	33	31	30.2	30	28.5	27	25	24
CDL(F)120-20-1	18.5		41	40	39.5	38.5	37	36.5	34.5	32.5	30	27.5
CDL(F)120-20	22		46	45	44.5	43.5	42.4	41	40	38	36	33.5
CDL(F)120-30-2	30		57	56	55	53.5	52	51	49	46.5	43.5	41
CDL(F)120-30-1	30		64	63	62	60	58.5	57.5	55.5	52	49	46
CDL(F)120-30	30		69.5	68.5	67.5	66	64	62.5	61	57.5	54.5	51
CDL(F)120-40-2	37		80.5	70	78	76	73.5	72	69	66	61.5	58
CDL(F)120-40-1	37		87	86	84.5	82	80	78	76	72	68	64.5
CDL(F)120-40	45		92.5	91	90	88	85.5	83	81	77	73	68.5
CDL(F)120-50-2	45		104.5	103	101	99	96	93	90	85.5	80.5	75.5
CDL(F)120-1	45		110.5	109	107.5	105	102	99.5	97	92	86.5	83
CDL(F)120-50	55		115.5	114	113	110	107.5	104.5	101.5	96	91	86
CDL(F)120-60-2	55		128	125.5	123	121	117.3	113.5	110	104.5	98.5	92.5
CDL(F)120-60-1	55		134	132	130.5	127	124	121	118	111	105	100
CDL(F)120-60	75		139	137	135	132	128.8	126	123	116	110	104
CDL(F)120-70-2	75		151	148	145.5	143	138.6	134	130	123.5	116.5	109
CDL(F)120-70-1	75		156.5	154	152	148.5	144.5	141	137.5	130	123	116.5
CDL(F)120-70	75		162.5	160.5	158.5	155	151	148	145	137	129	123

Model	Power (kW)	Q (m3/h)	80	90	100	110	120	130	140	150	160	170	180
CDL(F)150-10-1	11	H (m)	18.3	17.8	17.3	17	16	15	14	12.5	11	10	8.5
CDL(F)150-10	15		24	23	22.5	22	21.5	20.5	20	18.5	17	16	15
CDL(F)150-20-2	18.5		37	35.5	34	33	32	31	29	27.5	26	23	21
CDL(F)150-20-1	22		44.3	43	42	40	39	38.5	37.5	35	33	30	27
CDL(F)150-20	30		50	49	48	47	45.5	44	42	40	37	34	32
CDL(F)150-30-2	110		63.5	61	59	57.5	56	54.5	53	49	45.5	42	39
CDL(F)150-30-1	37		70	68	67	65	63	62	59	56	53	49	45
CDL(F)150-30	37		78	76.5	75	73	70.5	68	66	63	59	55	50.5
CDL(F)150-40-2	45		89	87	84	81.5	79	77	74	70.5	65.5	60	56
CDL(F)150-40-1	45		96.5	94	91.5	89	86.5	84	81.5	77	72.5	67	62
CDL(F)150-40	55		104	102	100	97	95	91	88	84	79.5	74	68
CDL(F)150-50-2	55		115.5	112	109	106	102.5	100	97	92	86	70	73.5
CDL(F)150-50-1	75		122.5	119.5	117	113.5	111.5	115.5	119.5	99	93.5	87	81
CDL(F)150-50	75		130	127.5	125	121	119	115	111.5	106.5	101	94.5	86.5
CDL(F)150-60-2	75		140	137	133	130	126	121	118	112	106	98	91
CDL(F)150-60-1	75		148.5	145	141.7	137.5	135	131	127	120.5	114.5	106.5	97.5
CDL(F)150-60	75		157	153	149	145	142	139.5	137	130	123.5	116	109

Model	Power (kW)	Q (m3/h)	100	120	140	160	180	200	220	240
CDL(F)(F)200-10-B	18.5	H (m)	25.5	25	24	23	21.5	20	18	15.5
CDL(F)(F)200-10-A	22		29	28.5	27.5	26.5	25.5	24	22	20
CDL(F)(F)200-10	30		38.5	38	37.5	36.5	35	34	32.5	30
CDL(F)(F)200-20-2B	37		53	51	49	47	44	41	37	32
CDL(F)(F)200-20-2A	45		59.5	58	56	54	52.5	49	44.5	40.5
CDL(F)(F)200-20-A	55		69	68	66	64	62	59	55.5	51
CDL(F)(F)200-20	55		78.5	77.5	76	74	71.5	69	66	61.5
CDL(F)(F)200-30-2B	75		91.5	89	86.5	83.5	79	75	70	63
CDL(F)(F)200-30-A-B	75		95	93	90	87	83.5	79	73.5	67
CDL(F)(F)200-30-2A	75		99.5	97.5	94.5	91.5	89	84	78.5	72
CDL(F)(F)200-30-B	75		104.5	102.5	100	97	93	89	84.5	77.5
CDL(F)(F)200-30-A	75		108	106	103.5	100.5	97.5	93	88	81.5
CDL(F)(F)200-30	90		117.5	116	113.5	110.5	107	103	99	92
CDL(F)(F)200-40-2B	90		131.5	129	125.5	121	115.5	110	103.5	94
CDL(F)(F)200-40-2A	110		138.5	136	132	128	124	118	111	102.5
CDL(F)(F)200-40-A	110		148	145.5	142.5	138	134	128	122	113
CDL(F)(F)200-40	110		157.5	155.5	152.5	148	143.5	138	132.5	123.5

CDL(F)

Overview

Features

Applications

Specification

相关产品

CHM

CVM

CST

CHL(F)(T)

CM
